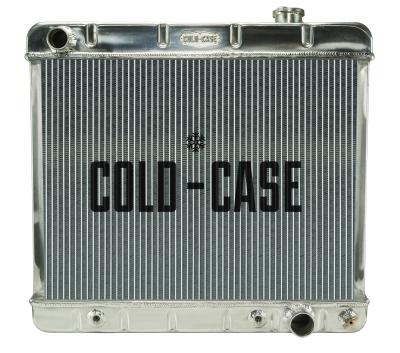

Cold Case Aluminum Radiator - 63-66

$400.00

1963-1966 Chevy/GMC Pickup Truck Aluminum Performance Radiator. For trucks with original 3 core mounts.

Also will fit some: 1961-1964 Grand Prix and 1961-1964 Bonneville/Catalina.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For automatic trans
  • Direct fitment for 63-66 GM Truck
  • Old Part Number: RPE55A

Radiator Specs

  • Core Height 17.4 inch
  • Core Width 22.75 inch
  • Overall Height 22.5 inch
  • Overall Width 24.5 inch
  • Overall Thickness 3 inch
  • Upper Hose
  • Lower Hose
  • Tubes (2) 1.25 inch Tubes
  • Trans Cooler Fitting: 5/16" Inverted Flare
Trans Cooler Fitting Size:
5/16 Inch Inverted Flare



1963-1966 Chevy/GMC Pickup Truck Aluminum Performance Radiator. For trucks with original 3 core mounts.

Also will fit some: 1961-1964 Grand Prix and 1961-1964 Bonneville/Catalina.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For automatic trans
  • Direct fitment for 63-66 GM Truck
  • Old Part Number: RPE55A

Radiator Specs

  • Core Height 17.4 inch
  • Core Width 22.75 inch
  • Overall Height 22.5 inch
  • Overall Width 24.5 inch
  • Overall Thickness 3 inch
  • Upper Hose
  • Lower Hose
  • Tubes (2) 1.25 inch Tubes
  • Trans Cooler Fitting: 5/16" Inverted Flare
Trans Cooler Fitting Size:
5/16 Inch Inverted Flare
